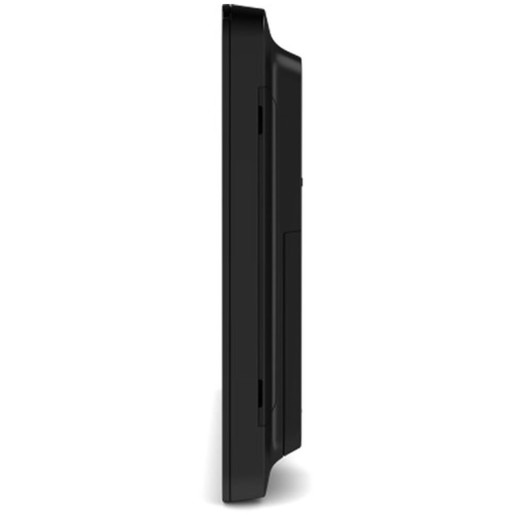

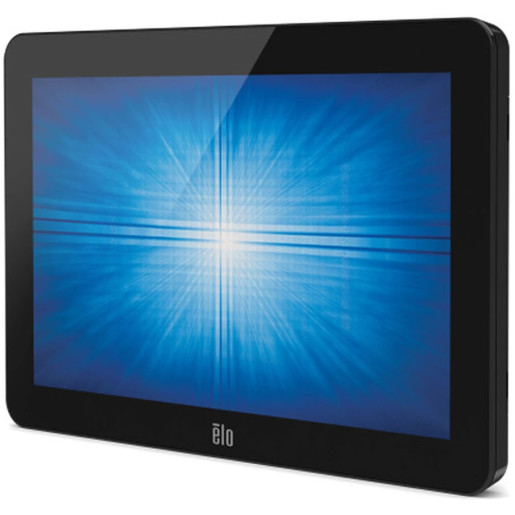

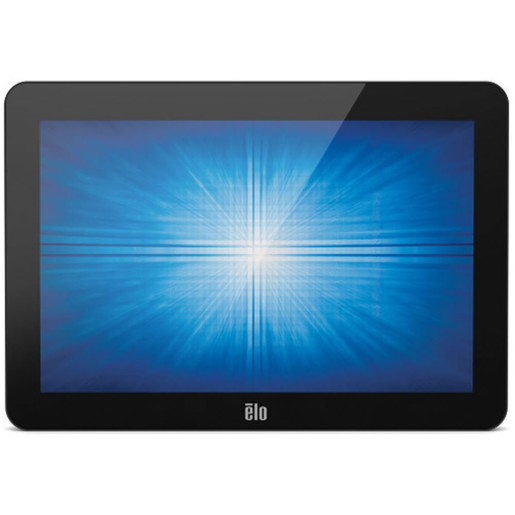

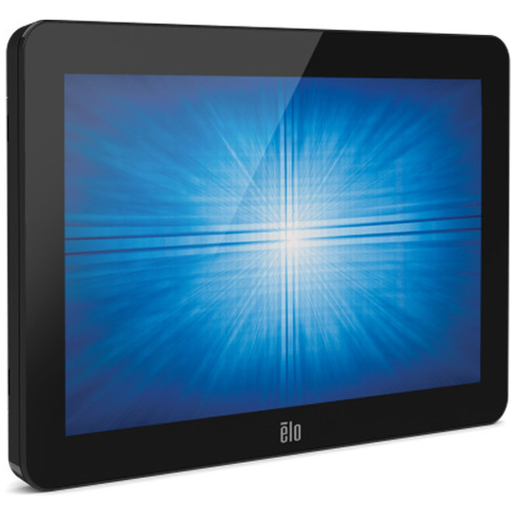

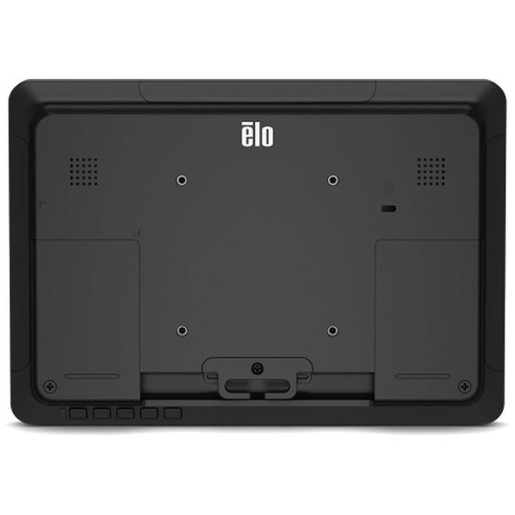

Ecran client Elo 1002L. Non-touch. 25.4 cm (10''). black

Descriere

Specificații Tehnice		ELO coduri
Cod intern al modelelor	Ecran client Touchscreen - PCAP (Worldwide) - E045337	E045337
	Ecran Client Non-Touch (Worldwide) - E138394	E138394
Culoare carcasă	Negru
Tehnologie touchscreen	Non-Touch
	PCAP (Projected Capacitive) - 10 Touch
Diagonală ecran	10.1'' diagonal, Active matrix TFT LCD (LED)
Grosime ecran	1.14" / 29mm panel depth
Factor de aspect	16:10
Suprafața activă ecran	8.57" x 5.37" / 218mm x 136.6mm
Rezoluția standard	1280 x 800
Suportă și rezoluțiile	640 x 480 @ 60Hz
	800 x 600 @ 60Hz
	1024 x 768 @ 60Hz
	1280 x 800 @ 60Hz
	1920 x 1080 @ 60Hz
	1920 x 1200 @ 60Hz
Unghi vizualizare	Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Număr culori afișate	262.000
Strălucire imagine	LCD panel: 350 nits
	PCAP (DC Power): 315 nits
	PCAP (USB Power): 176 nits
Timp de răspuns tipic	25 msec
Contrast	700:1
Tip interfața touchscreen	USB
On Screen Display	Accesibile cu ajutorul butoanelor de pe spatele ecranului: Butoane: Menu, Up, Down, Select Setari: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese Lockouts: OSD, Power
Difuzoare	2 x 2W internal speakers
Format intrare video	Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported
Putere consumată tipic	Monitor + AC/DC adapter ON: 5.6W SLEEP: 0.4W OFF: 0.2W Max Power Consumption with USB Power: 7W
Sursă alimentare	Alimentator extern : 12VDC +/- 5%; 100-240VAC, 50/60Hz
Conector alimentare	Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Dimensiuni monitor ( fără suport)	10.02" x 6.98" x 1.14" / 254.6mm x 177.3mm x 29mm
Dimensiuni cutie livrare	12.2" x 5.47" x 9.37" / 310mm x 139mm x 238mm
Greutate (neînpachetat )	1.75 lbs / 0.79 kg
Greutate ( înpachetat pentru livrare)	4.5 lbs / 2 kg
Temperatură de lucru	0°C to 40°C / 32°F to 104°F
Temperatură de stocare	-20°C to 60°C / -4°F to 140°F
Umiditate operare/stocare	Operating: 20% to 80%; Storage: 10% to 95%
Mod sigilare	Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF	50.000 de ore demonstate
Alte caracteristici	Opțional kit montare pe perete, raft sau picior, vezi în secțiunea accesorilor
	difuzoare interne 2 x 2W
	slot pt securizare Kensington lock
Garanție	3 ani oferite de ELO Touch
Declarații conformitate și certificate	UL, cUL, FCC, IC, CE, VCCI, CCC, BSMI
Ce este în cutie	QIG, Japan Class-B TM info, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps
Opțional	PCAP Stylus Pen cod E066148	E066148
Periferice opționale	Magnetic Stripe Reader (MSR) – Elo P/N: E001002	E001002
	NFC/RFID Reader – Elo P/N: E001004	E001004
	Barcode Reader (BCR) – Elo P/N: E093433	E093433
	Customer Display (2x20 VFD) – Elo P/N: E001003	E001003
	2D Barcode Scanner – Elo P/N: E926356	E926356
	EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465	E200465
	EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088	E201088
	EMV Cradle for MagTek eDynamo - Elo P/N: E375343	E375343
	EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981	E586981
	EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930	E710930
Suporți și sisteme montare	Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088	E143088
	Elo Backpack® - Elo P/N: E611864	E611864
	Elo Backpack® 3.0 - Elo P/N: E901355	E901355
	Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104	E160104
	Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382	E043382
	Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069	E048069
	Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458	E047458
	Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663	E047663
	Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864	E047864
	Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151	E045151
	1.8m Cable Kit - Elo P/N: E210789	E210789
	3m Cable Kit - Elo P/N: E210606	E210606
	Power Brick Kit – 1.8m Power Cable - Elo P/N: E211174	E211174
	Power Brick Kit – 3m Power Cable - Elo P/N: E210973	E210973
	1.8m Power USB Cable - Elo P/N: E457742	E457742
	3m Power USB Cable - Elo P/N: E209775	E457742
	Wallaby™ POS Stand (Black) - Elo P/N: E949536	E949536
	Wallaby™ POS Stand (White) - Elo P/N: E353758	E353758

Specificatii tehnice: descarcă aici
