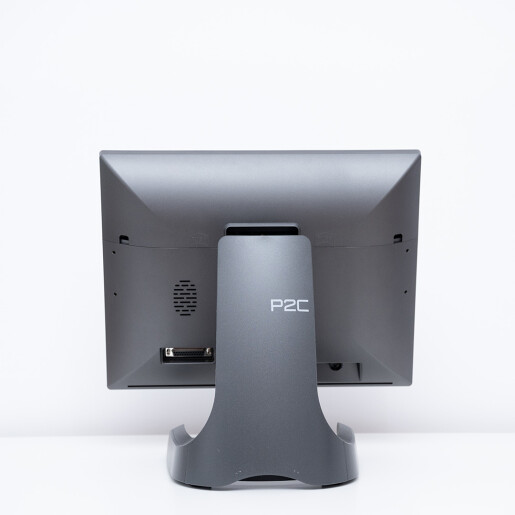

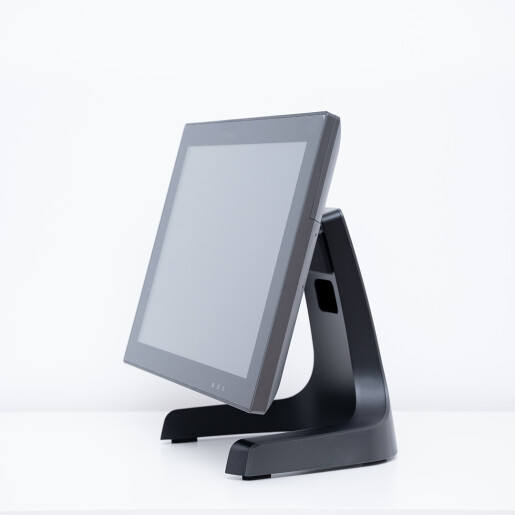

Sistem POS All In One P2C-E250 GRI

Descriere

Caracteristici tehnice sistem POS All in One P2C-E250 :

System	Processor Intel® Celeron® Quad-core Processor J6412 2.0GHz/2.6GHz
	Chipset / BIOS Intel® Elkhart Lake SoC / AMI
	Storage 2.5" SATA III SSD 128GB
	Memory 8GB SO-DIMM, DDR4 2666MHz~3200MHz x 1 (Max 32GB, optional)
	Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
	Multi Monitor 3 (# of Displays Supported) - up to 3 monitors (optional)
	Expansion Slot 1 x m.2 NVMe 1 x m.2 WiFi & Bluetooth (optional)
	OS Windows 11 IoT Enterprise LTSC 2024

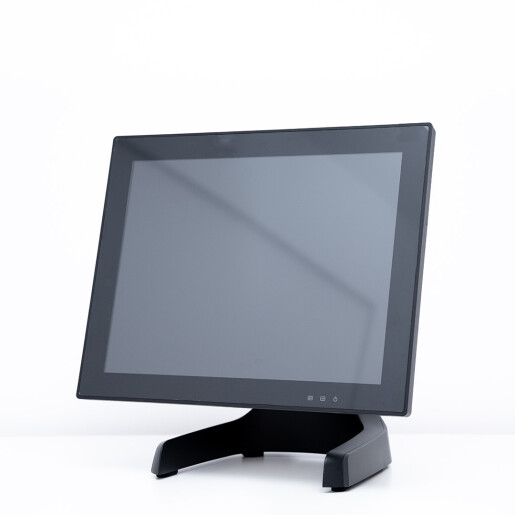

Display	Primary Display Type 15" WLED Backlight (Brightness: 350 cd/㎡, 1024 x 768 Resolution) * E-Series is 15.6" FHD (16:9) Available
	Touch True-Flat Capacitive 10 Point Multi-touch

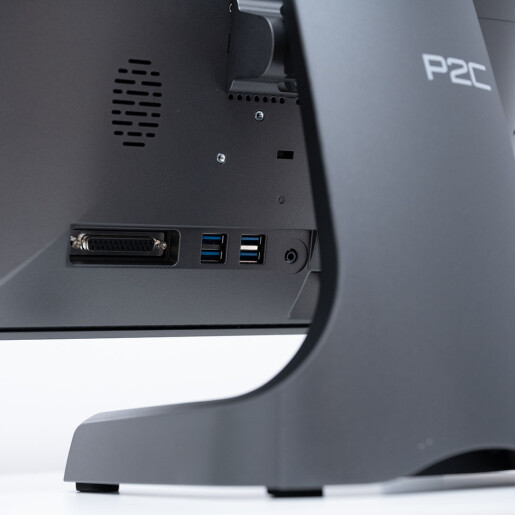

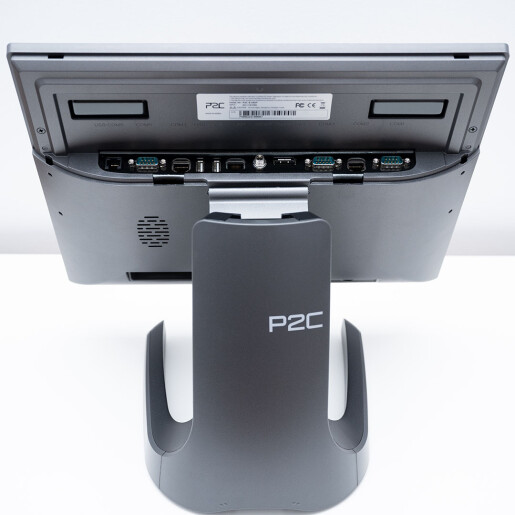

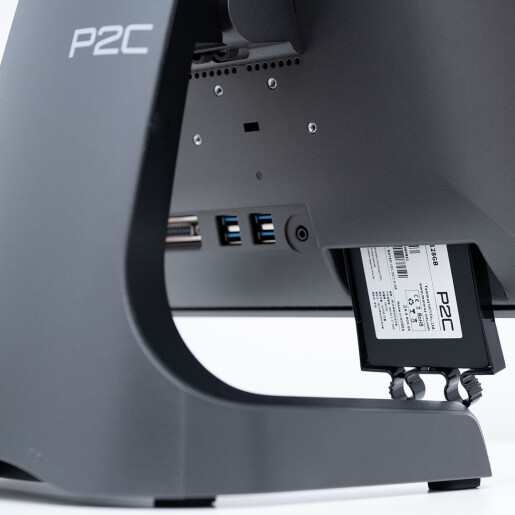

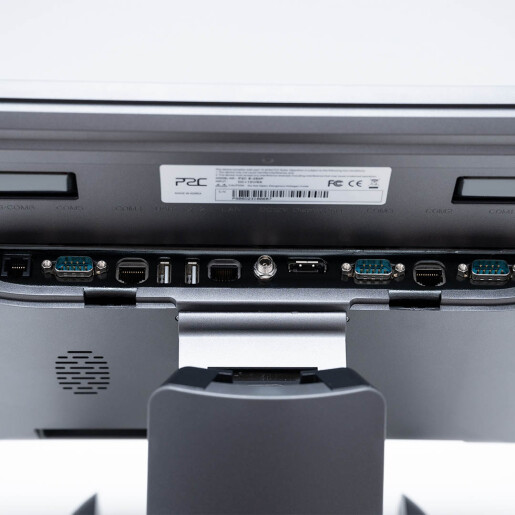

I/O Interfaces
	USB 2 x USB 2.0 (Rear Top x 2), 4 x USB 3.0(Rear Bottom x 4) 1 x USB 2.0 (RJ11)
	Serial · 6 (DB9 x 3, RJ50 x 2, RJ11 x 1) COM1, 3, 5: DB9(+5V on pin #9, selectable by BIOS) · COM2, 4 (RJ50, RJ45): Support +5V and 12V(G200 only) for Special Devices and can be used for Kitchen Printer · COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
	Audio 1 x Audio-out / 3.5mm
	Secondary Display 1 x DisplayPort (included 1 x USB 2.0 / Power Delivery +12V) *Can be used for HDMI and Standard DVI, VGA monitor by passive cable.
	LAN 1 x RJ45 (Base-T 10/100/1000 Ethernet)
	Speaker (optional) 3W x 1
Peripheral Options

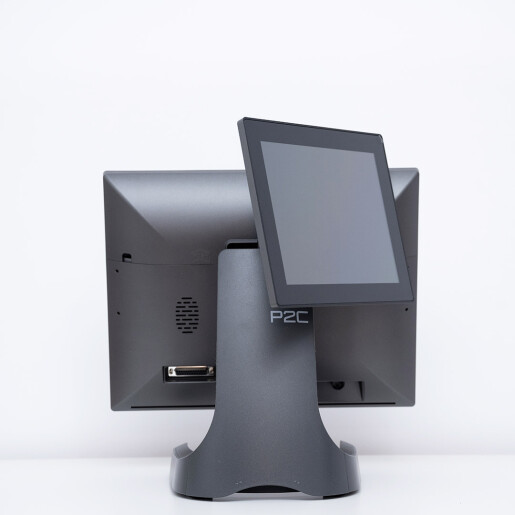

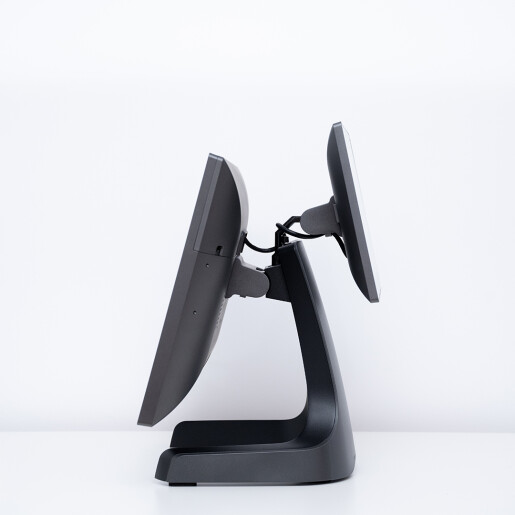

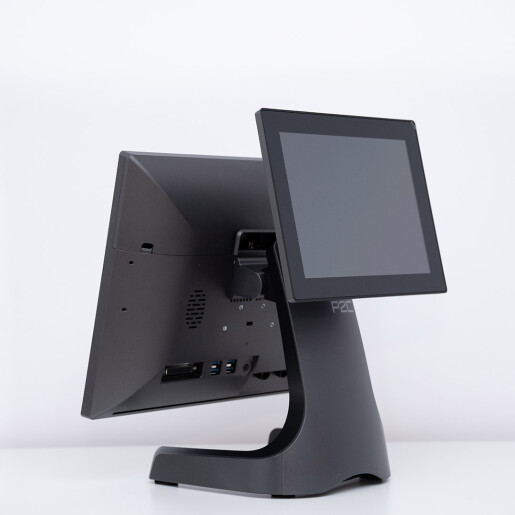

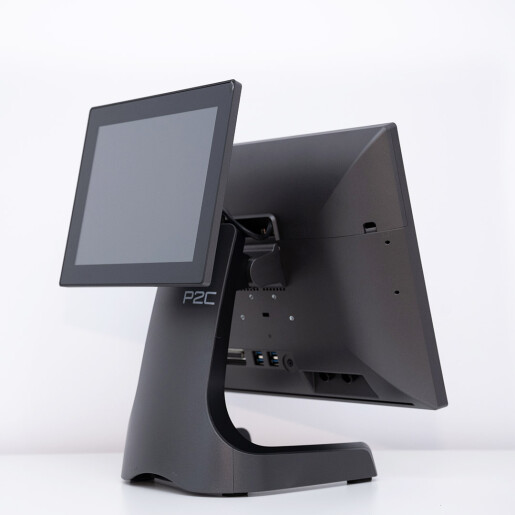

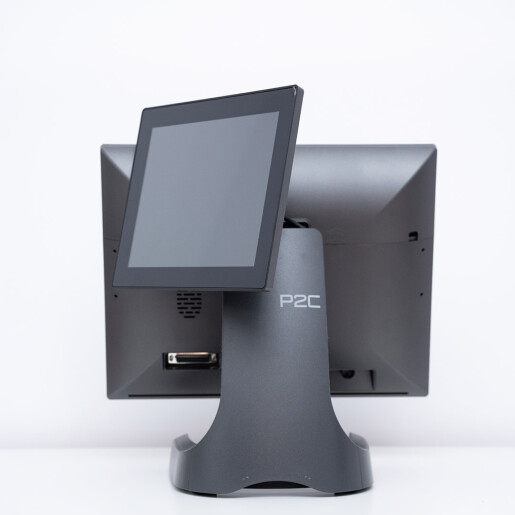

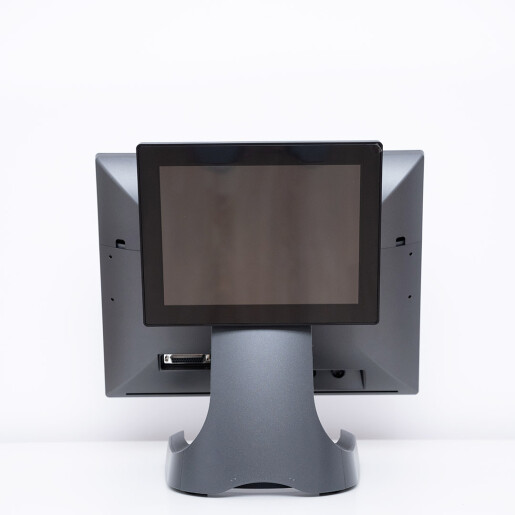

	Secondary Display • LCD Type: 9.7" or 15" LCD (USB Port x 1) • Touch Monitor: 9.7" or 15" LCD with Capacitive Touch (USB Port x 1) - by single cable(no power & USB cable) • Standard Monitor: supported standard DP, HDMI, DVI, VGA monitor by change monitor cable) • Standard and Powered DP MST Hub: supported standard or powered(customized) DP MST Hub.

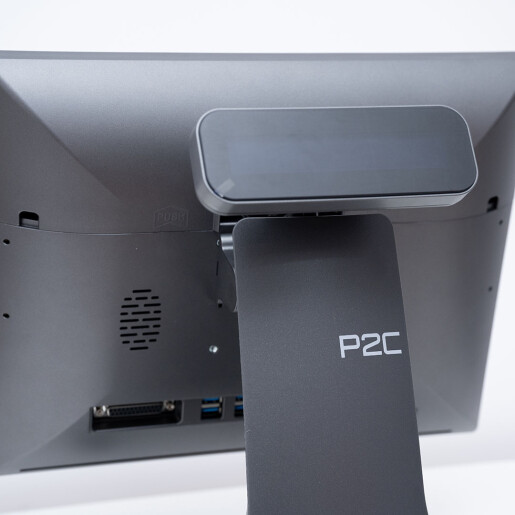

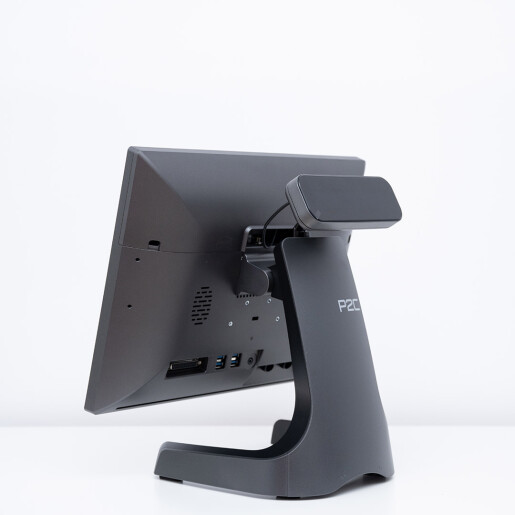

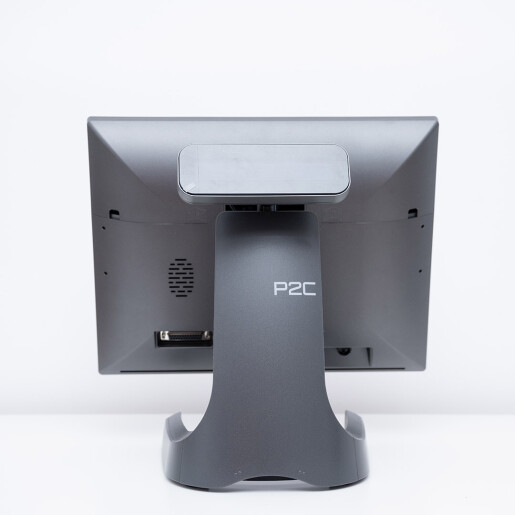

	Customer Display (CDP) FSTN LCD Type (20 columns x 2 lines)

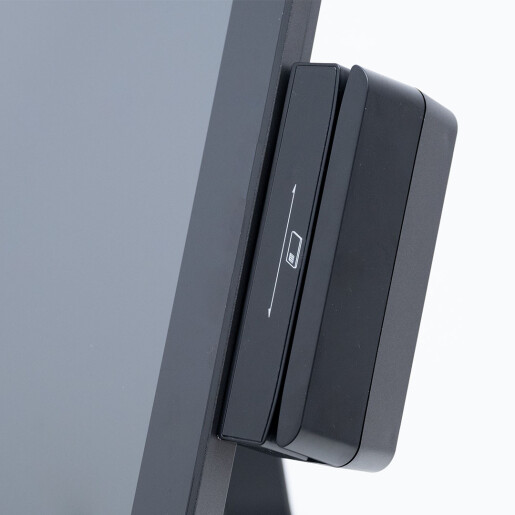

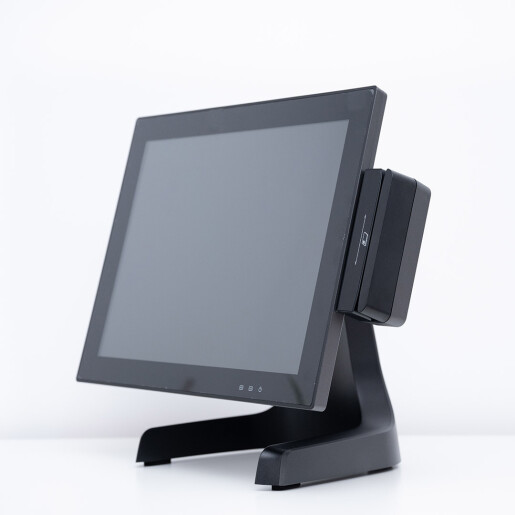

	Card Reader (MSR / SCR) Smart Card Reader: ISO/IEC7816 EMV Level 1 / Magnetic Stripe Reader: ISO 7811 ID-1 All tracks *Interface: USB(HID) and RS232C(COM6)
	Dallas Reader Dallas Reader(i-button): 6 characters / prefix and suffix *Interface: USB(HID) and RS232C(COM6)
Physical Dimension
	Dimension (W x D x H) 362 x 237 x 357 (mm) / 14.2 x 9.3 x 14.0 (inch)
	Weight 4.5 (Kg) / 9.9 (lb)
Environment
	Power Supply DC 12V/5A (AC 100V~240V, 60W)
	Temperature Operating: 0 ~ 50℃ at 10% to 90% humidity
	Certifications CE, FCC, KC, CB

Informatii

Drivere si Documentatii

• Ghid instalare sisteme P2C seria 250
• Drivere POS All in One E250 - J6412
